Bellows type, Cryogenic Liquids and In-line

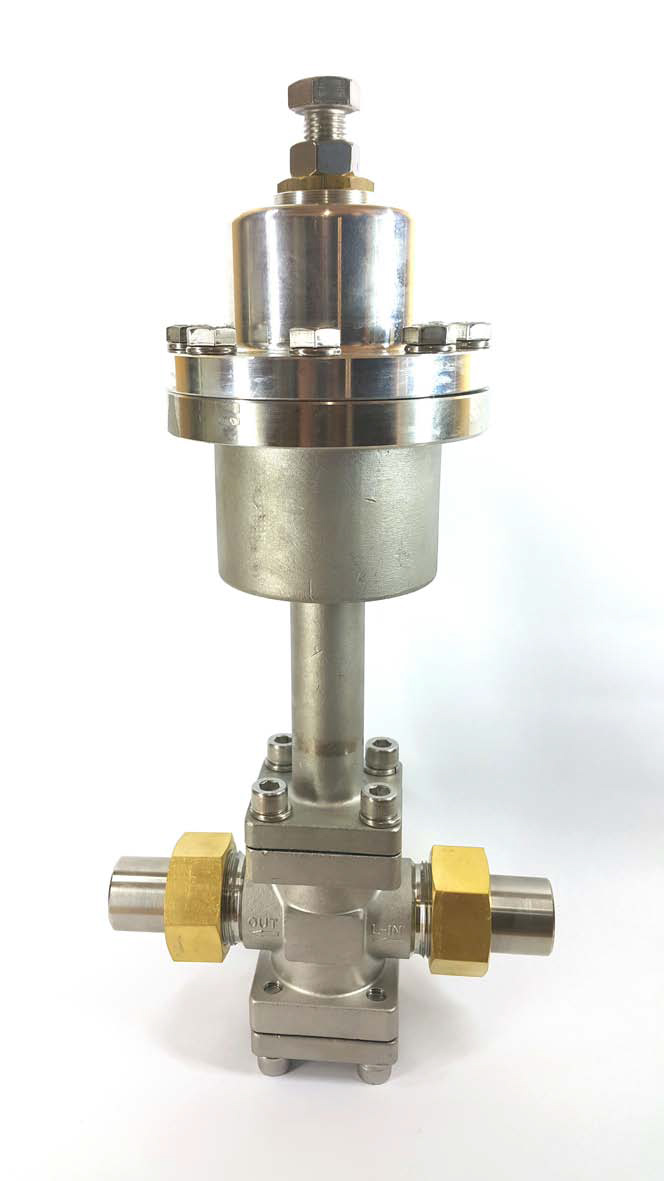

“Corrosive Gas Pressure Regulator” is designed to control pressure on both cryogenic liquid system and in-line.
This is used extensively in bulk storage tanks, portable liquid cylinders, vaporizer and pipelines for NH3, LC₂H₄ and LCL₂.
As bellows are used instead of diaphragm, Cv value of regulator is much bigger than the others.
Service characteristics

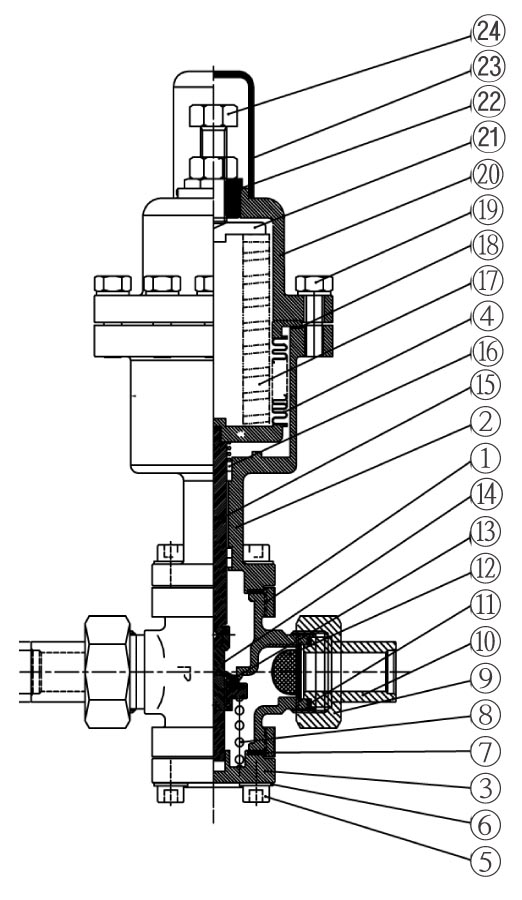

| No | Name | Material | No | Name | Material | 1 | Body | CF 8 | 13 | Disc Set | PCTFE | 2 | Cup-Bonnet | CF 8 | 14 | Shaft | SUS 304 | 3 | Flange | CF 8 | 15 | Stem | SUS 304 | 4 | Bellows | SUS 304 | 16 | Packing | PTFE | 5 | Bolt | SUS | 17 | Act-Spring | SUS | 6 | Washer | SUS | 18 | BL-Gasket | V7020 | 7 | Body Gasket | V7020 | 19 | Bolt | SUS | 8 | Disc Spring | SUS | 20 | Spring Cup | AL6061 | 9 | Swing | SUS304 | 21 | Bolt Disk | SUS304 | 10 | Nut | C3604 | 22 | Cup Boss | C3604 | 11 | Gasket | V7020 | 23 | Bolt Cup | AL6061 | 12 | Filter | SUS304 | 24 | Adjust Bolt | SUS |
|---|
Product Specifications
| Description | G |
| Design Pressure | 3.5 |
| Design Temperature | -60℃~60℃ |
| Kind of Fluid | NH3, LC₂H₄, LCL₂ |
| Hydrostatic Test | 5.3 |
| Pneumatic Test | 3.9 |
| Adjust Range | 0.5~3.5 |
No maintenance is required other than replacement of seat assembly if any problems happen.
NS530 Ordering information
| Model No. | SIZE | ØD | d | d1 | L | L1 | A | B | Cv |
|---|---|---|---|---|---|---|---|---|---|
| NS530-15 | 1/2″(15A) | 15 | 17 | 21.7 | |||||
| NS530-25 | 1″(25A) | 25 | 25 | 34 | 60 | 290 | 190 | 128 | 3.2 |
1. Manufactured by exclusive technology.
2. G model for gas.
3. L model is recommended to be upright.
