Bellows type, Cryogenic Liquids and In-line print
NS_500G, NS_500L
Bellows type, Cryogenic Liquids and In-line

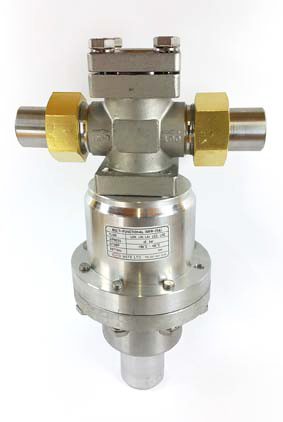

MC Pressure Regulator” is designed to control pressure on both cryogenic liquid system and in-line.
This is used extensively in bulk storage tanks, portable liquid cylinders, vaporizer and pipelines for LO2, LN2, LAr and LNG.
As bellows are used instead of diaphragm, Cv value of regulator is much bigger than the others.
Service characteristics

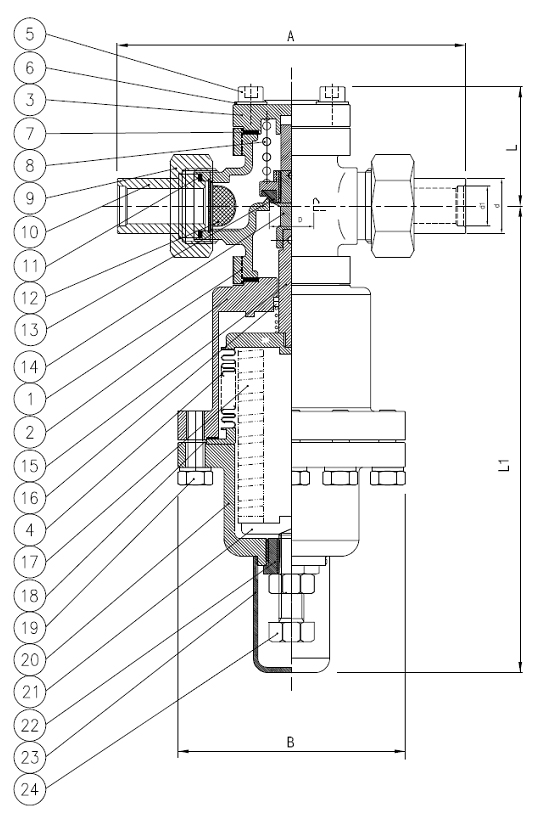

| No | Name | Material | No | Name | Material | 1 | Body | CF 8 | 13 | Disc Set | PCTFE | 2 | Cup-Bonnet | CF 8 | 14 | Shaft | SUS 304 | 3 | Flange | CF 8 | 15 | Stem | SUS 304 | 4 | Bellows | SUS 304 | 16 | Packing | PTFE | 5 | Bolt | SUS | 17 | Act-Spring | SUS | 6 | Washer | SUS | 18 | BL-Gasket | V7020 | 7 | Body Gasket | V7020 | 19 | Bolt | SUS | 8 | Disc Spring | SUS | 20 | Spring Cup | AL6061 | 9 | Swing | SUS304 | 21 | Bolt Disk | SUS304 | 10 | Nut | C3604 | 22 | Cup Boss | C3604 | 11 | Gasket | V7020 | 23 | Bolt Cup | AL6061 | 12 | Filter | SUS304 | 24 | Adjust Bolt | SUS |
|---|
Product Specifications
| Description | G | L |
| Design Pressure | 3.5 | 3.5 MPa |
| Design Temperature | -60℃~60℃ | -196℃~75℃ |
| Kind of Fluid | N₂, LO₂, LAr, CO₂ | |
| Hydrostatic Test | 5.3 | 5.3 MPa |
| Pneumatic Test | 3.9 | 3.9 MPa |
| Adjust Range | 0.5~3.5 | 0.5~3.5 ㎫ |
No maintenance is required other than replacement of seat assembly if any problems happen.
NS-500-G, NS-500-L Ordering information
| Model No. | SIZE | ØD | d | d1 | L | Wt | A | B | Cv |
|---|---|---|---|---|---|---|---|---|---|
| NS500-25 | 1″(25A) | 25 | 25 | 34 | 243 | 26.4 | 201 | 120 | 3.9 |
| NS500-40 | 1-1/4″(40A) | 15 | 17 | 21.7 | 223 | 20.9 | 201 | 120 | 1.3 |
1. Manufactured by exclusive technology.
2. G model for gas and L model for liquid.
3. L model is recommended to be upright.
