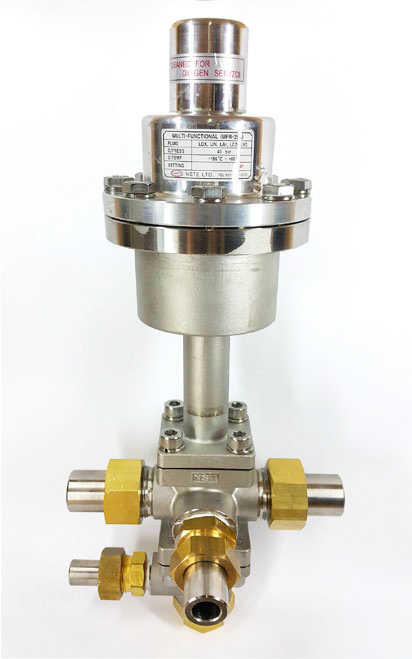

Product Specifications
| Available fluid | LN₂, LO₂, LAr, LCO₂, LNG |
| Flux | 300~25,000 N㎥/h |
| Maximum operating pressure | Low pressure2.0 ㎫ High pressure4.0 ㎫ |
| Adjustable pressure range | Low pressure 0.2~1.7 ㎫ High pressure 0.6~3.5 ㎫ |
| Drive temperature | -196℃~40℃ |
a. With only two pipes installation as possible
b. This drastically reduces the components used, and the drive is easy to install
c. Drive and qualified are simple and maintain stability
*Storage tanks will be produced with new(LO2, LN2, LAr, LNG)
*Reduced pressure, and elevated pressure, the liquid supply pipe all of the features are included
MFR Flow Data table
Pressure7bar, Temperature-196℃, Liquid Nitrogen,900㎜ liquid boosting the ability of the above
•Liquid flow rates of gas compared to Transmission Quantity: N㎥/hr
| Dimensions | Can flowmeter(Cv) | PB Liquid flowrate(1/hr) |
PB Gas Volume(㎥/hr) |
The maximum liquid Take-out amount(㎥/hr) |
The maximum gas Transmission Quantity(N㎥/hr) |
The crosssectional area (㎡) |
gas Transmission Quantity (N㎥/hr) |
||
|---|---|---|---|---|---|---|---|---|---|
| 1m/sec | 3m/sec | 5m/sec | |||||||
| 15A(1/2″) | 4 | 900 | 160 | 20 | 12,900 | 4 | 300 | 900 | 1,500 |
| 25A(1″) | 14 | 3,200 | 580 | 70 | 45,200 | 14 | 1,200 | 3,600 | 6,000 |
| Format | Function | Pressure Range(㎫) | Size(㎜) | Weight(㎏) |
|---|---|---|---|---|
| EL-15L | EC,LS,PB | 0.2~1.7 | 290×140×115 | 5 |
| ELF-15H | EC,LS,PB | 0.6~3.5 | 290×140×115 | 5 |
| ELF-25L | EC,LS,PB | 0.2~1.7 | 470×250×200 | 5 |
| ELF-25H | EC,LS,PB | 0.6~3.5 | 470×250×200 | 5 |
