Long-stem for Cryogenic Liquid and Gas print
NS_100B

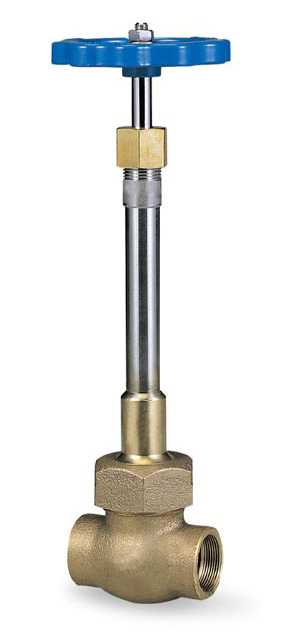

BC Cryogenic Globe Valve
Design pressure : 3.0Mpa
Design temperature : -196℃~75℃
Kind of fluid : LN2, LO2, LAr, LCO2, LNG, LC₂H₄
Hydrostatic test pressure : 4.5 Mpa
Pneumatic test pressure : 3.3 Mpa
“BC Cryogenic Long-stem Globe Valve” is designed to provide positive shut-off of cryogenic liquid systems.
This valve is used extensively in bulk storage tanks, portable liquid cylinders and pipelines for LO₂, LN₂ and LAr. Unique design and manufacturing technology give much better price and more reliability.
Service characteristics

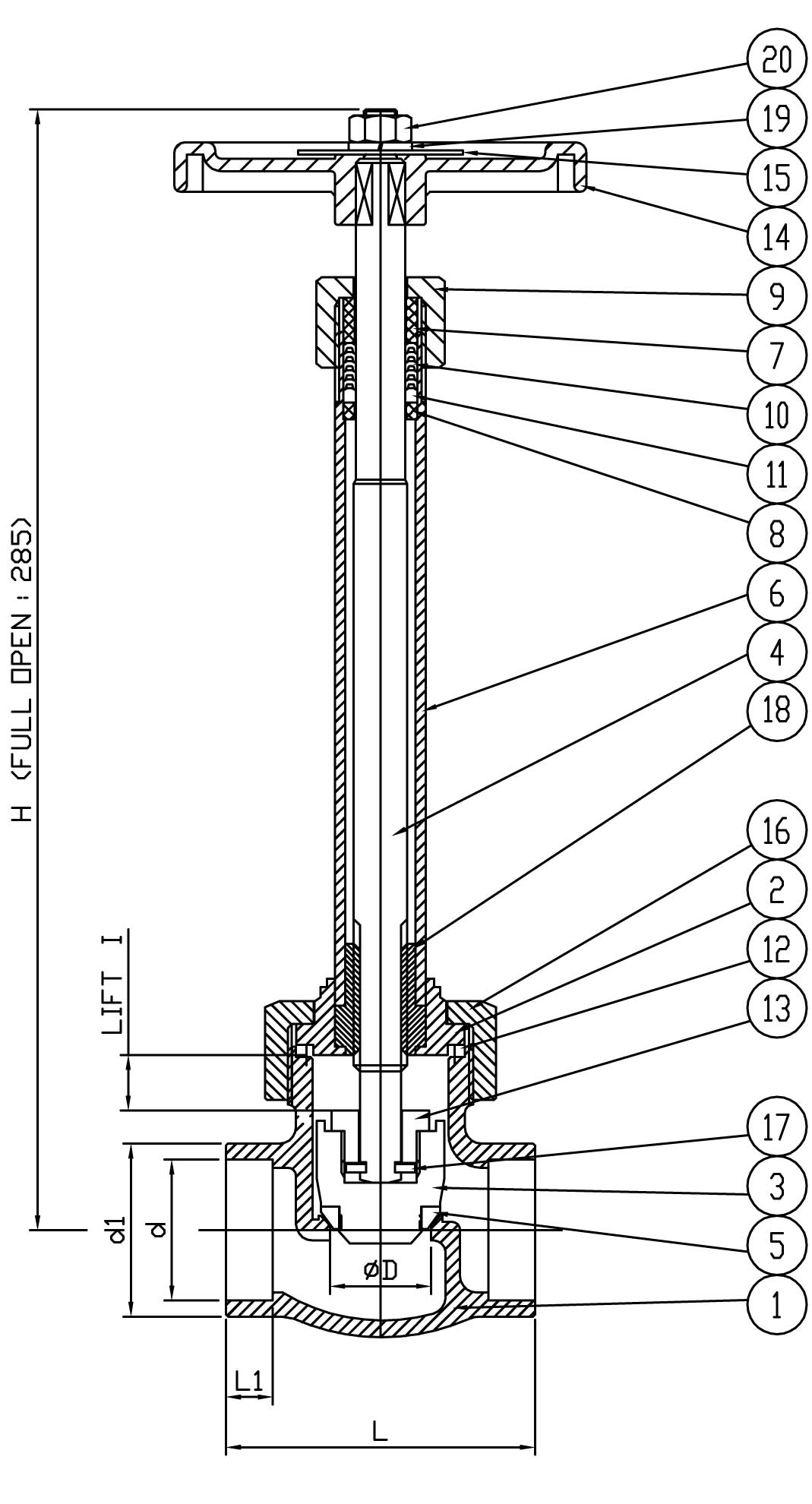

| No | Name | Material | No | Name | Material |
|---|---|---|---|---|---|
| 1 | Body | BC 7 | 13 | Disc Lock Nut | C3604 |
| 2 | Bonnet | BC 7 | 14 | Hand Wheel | ALDC8 |
| 3 | Disc | C3604 | 15 | Name Plate | A1100P |
| 4 | Stem | SUS 304 | |||
| 5 | Disc Seat | PCTFE | |||
| 6 | Extended Pipe | SUS 304 | |||
| 7 | Gland Ring | C3604 | |||
| 8 | Packing Ring | C3604 | |||
| 9 | Grand Nut | C3604 | |||
| 10 | Packing | PTFE | |||
| 11 | Packing Adapter | PTFE | |||
| 12 | Gasket | V#7020 |
No maintenance is required other than replacement of seat assembly if any problems happen.
NS100b Ordering information
| Model No. | SIZE | ØD | d | d1 | L | L1 | I | W | H | Cv |
|---|---|---|---|---|---|---|---|---|---|---|
| NS100b-10A-SW | 3/8”(10A) | 12 | 17.5 | 26 | 56 | 8 | 8 | 80 | 160 | 2.0 |
| NS100b-15A-SW | 1/2″(15A) | 15 | 21.9 | 30 | 62 | 9 | 10 | 80 | 165 | 2.9 |
| NS100b-20A-SW | 3/4″(20A) | 20 | 27.4 | 36.8 | 70 | 11 | 12 | 100 | 180 | 6.1 |
| NS100b-25A-SW | 1″(25A) | 25 | 34.2 | 44 | 76 | 12 | 13.5 | 100 | 285 | 9.3 |
| NS100b-32A-SW | 1-1/4”(32A) | 32 | 42.9 | 52 | 90 | 13 | 16 | 100 | 350 | 14.0 |
| NS100b-40A-SW | 11/2″(40A) | 40 | 48.8 | 62 | 110 | 14 | 22 | 140 | 430 | 25.0 |
| NS100b-50A-SW | 2″(50A) | 50 | 61.0 | 74 | 130 | 15 | 25 | 140 | 460 | 38.0 |
