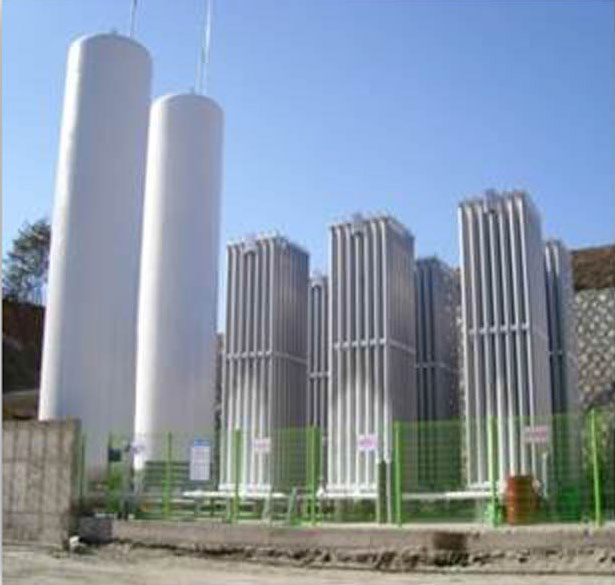

Ambient Vaporizer System print

Natural atmospheric vaporizer type is?

Thermal conductivity is to interconnect the Star Fin-Tube with excellent gas and liquid aluminum Fin-Tube outside air is not required with the storage tank to the gas used as a device to vaporize the liquefied gas by heat exchange with the natural convection one of the devices.

Merit: Maintenance is easy and does require a different utility, anyone can easily use. In addition, in accordance with the incidental cost of retesting it will not occur.
Disadvantages: When using a vaporizer in a row, compared to the force as a freezing of the vaporizer heat exchange it requires much less space.

Product Specifications

Description NS
Design Pressure 1.0~70㎫
Design Temperature -254℃~+40℃
Kind of Fluid LN₂,LO₂,LAr, LCO₂, LNG, LC₂H₄
Capacity Max 10,000 N㎥/hr
Mateial SUS304 & a6063s-t5
Model CAPACITY
(N㎥/hr)
Standard Fin-Tube(Ø125) Extra Fin-Tube(Ø175) Connection Size
Dimension(㎜) Dimension(㎜) Inlet Outlet
W L H W L H
NEV100-20 20 320 670 1,350 - - - 15A 15A
NEV100-40 40 670 670 1,350 - - - 15A 15A
NEV100-60 60 670 1020 1,350 - - - 15A 15A
NEV100-100 100 730 930 2,670 - - - 25A 25A
NEV100-150 150 930 1120 2,670 - - - 25A 25A
NEV100-200 200 930 1530 2,670 - - - 25A 25A
NEV100-300 300 1130 1930 2,670 - - - 25A 25A
NEV100-400 400 1130 14,100 3,670 - - - 25A 25A
NEV100-500 500 - - - 930 1350 4720 25A 40A
NEV100-1000 1000 - - - 1175 2450 6160 40A 50A
NEV100-1500 1500 - - - 1675 2200 7160 40A 80A
NEV100-2000 2000 - - - 1925 2700 7160 40A 80A
