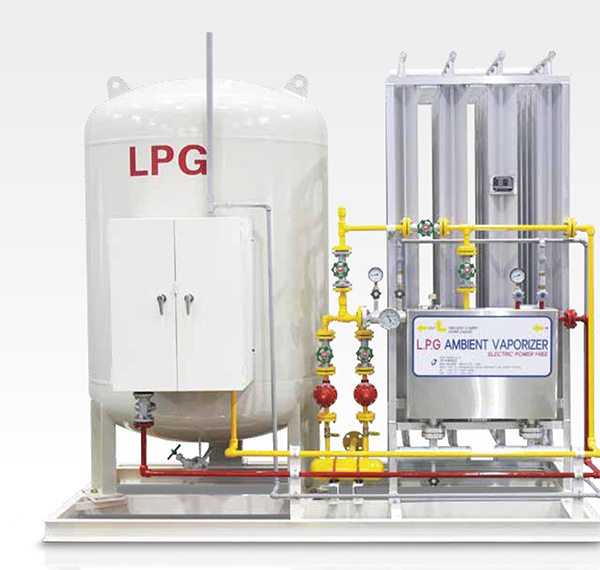

Ambient Vaporizer System for LPG Package print

ELECTRIC POWER FREE SYSTEM

COST SAVING
SAFER OPERATION
ECO FREINDLY

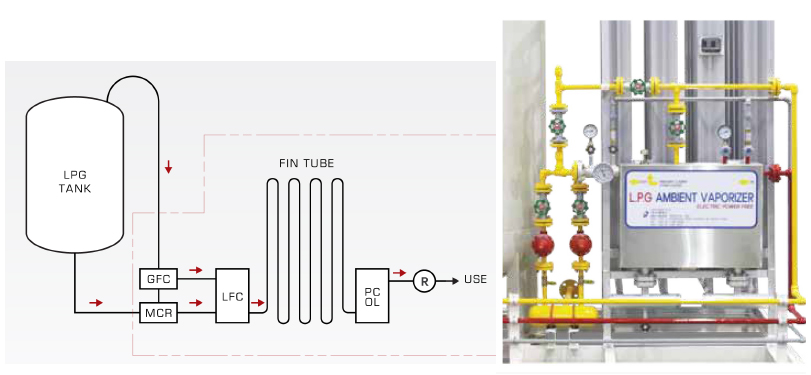

NSTE waiting to sell a new carburetor way through years of rese arch and empirical testing by mixing the liquid LPG in the GFC and to take full advantage of the natural vapori zation capacity of the LPG storage tank at a set pressure is configured as MC, the vaporization ef ficiency increase a localized low-temperature LPG for Al.
Star Fin Tube Type in LFC has since set up according to the initial driving co nditions so appropriately control the fluid flow does not require an external operation.
This artificial ambient temperature and LPG temperature difference significantly by increasing the ability to dramatically by vaporization has been able to replace an electric hot water heater was used primarily on conventional carburetor.
In addition, it is also equipped with PCOL due to overdose when used for more than the design capacity of the vaporizer was brought further improve safety, both because it is a natural phenomenon that almost no fear of failure.
Above all, there is no external electricity facilities no risk of accidents due to electricity failure, as well as not have worried, the electricity consumption is not at all environmentally friendly products.

Specifications

Model No. CAPACITY( ㎏/hr) W(㎜) L(㎜) H(㎜) INLET OUTLET EMPTY WEIGHT(㎏)
NLV200-50L 500 926 926 2,270 20A 25A 110
NLV200-100L 100 1,176 1,426 2,470 20A 25A 220
NLV200-200L 200 1,676 1,926 2,700 25A 25A 380
NLV200-300L 300 1,676 1,926 3,700 25A 25A 550

Economics contrast

CAPACITY( ㎏/hr) OUTLET EMPTY WEIGHT(㎏)
Power Ratio Basic rate : (14 ㎾ * 6,160 \/㎾) 86,240\ none
Power consumption rates : (8 hours per day, Load factor80%)
( 1 4 ㎾ * 80% electrical load * 8 h/일 * 30 일 *100 \/㎾)
268,800\
monthe of 268,800\
Installation area If a relatively small but broad view of security street Large Rather
Durability Carburetor life expectancy: 4 - 6 year Permanent use
Heater Replacement cycle : 2 - 4 year
Re-inspection cycle : 3year
Additional Facilities Power cable none
NS-200L Independent of the ambient temperature(Freezing cold regions concerned) The average temperature : 0 ℃ or more regions(Lowest temperature -15 ℃ or more regions)
