NS_400B

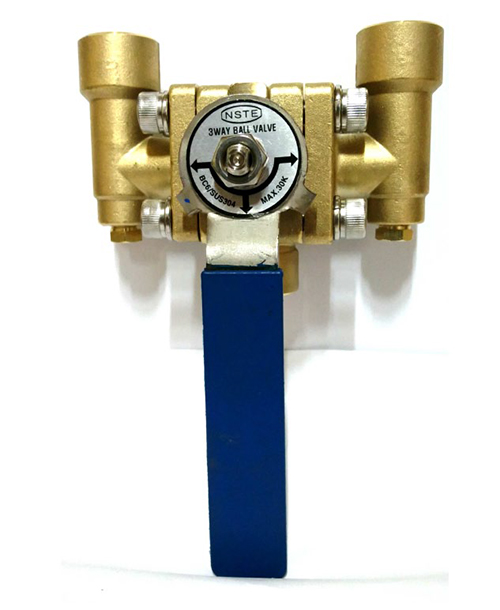

Bronze Diverter Valve
Design pressure : 3.0Mpa
Design temperature : -196℃~75℃
Kind of fluid : LN2, LO2, LAr, LCO2, LNG
Hydrostatic test pressure : 4.5 Mpa
Pneumatic test pressure : 3.3 Mpa
“Bronze Diverter Valve” is designed to divert the safety and rupture disc in cryogenic liquid systems.
This valve is used extensively in safety system for bulk storage tanks, portable liquid cylinders and pipelines for LO2, LN2, LAr and LNG.”
NS400b Ordering information
Service characteristics
| No | Name | Material | No | Name | Material |
|---|---|---|---|---|---|
| 1 | Body | C3771 | 10 | Stem Bush | SUS 304 |
| 2 | Cap | C3771 | 11 | SpringWasher | SUS 304 |
| 3 | Ball | SUS 304 | 12 | Nut | SUS 304 |
| 4 | Ball Seat | R-PTFE | 13 | Lever | SUS 304 |
| 5 | O-ring | VITON | 14 | Bolt | SUS 304 |
| 6 | Stem | SUS 304 | 15 | Plug Bolt | C3771BD |
| 7 | Gland Packing | R-PTFE | 16 | Gasket | R-PTFE |
| 8 | Gland Ring | SUS 304 | 17 | Liner | R-PTFE |
| 9 | Bearing | R-PTFE |
No maintenance is required other than replacement of seat assembly if any problems happen.
NS400b Ordering information

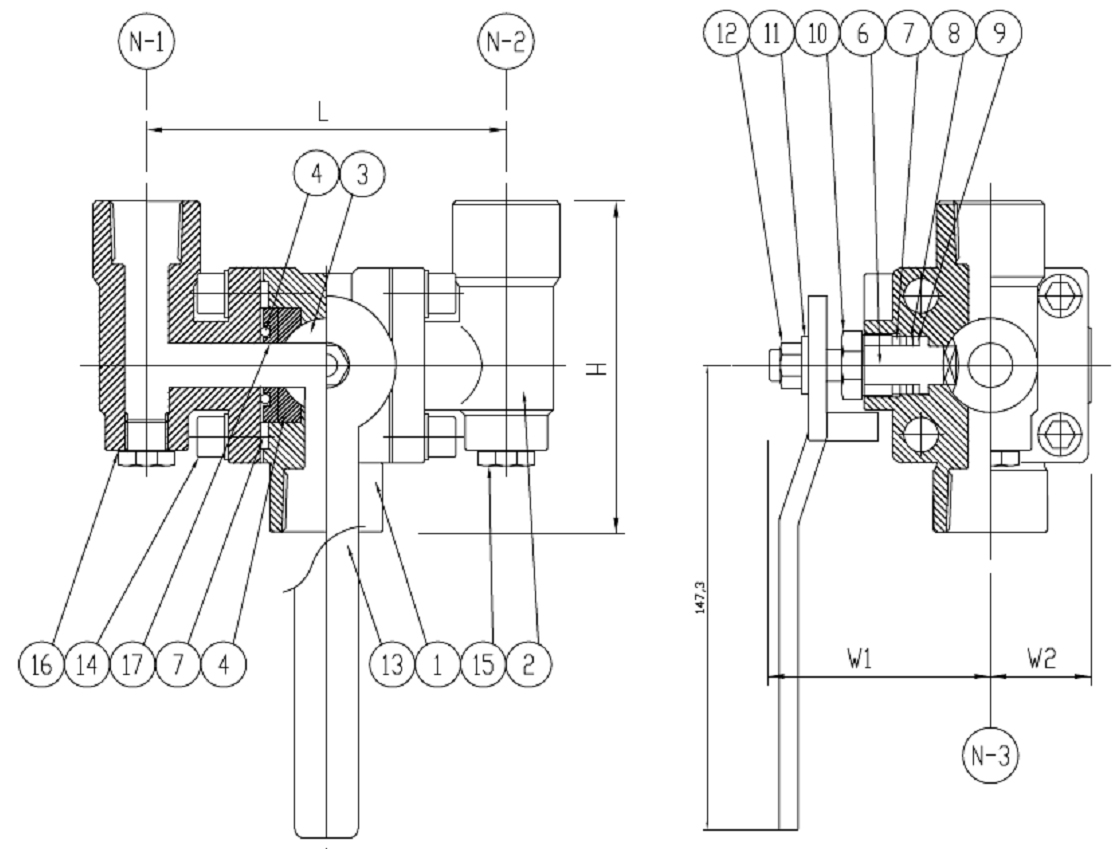

| Model No. | SIZE | L | H | T | W1 | W2 | Nozzle size |
